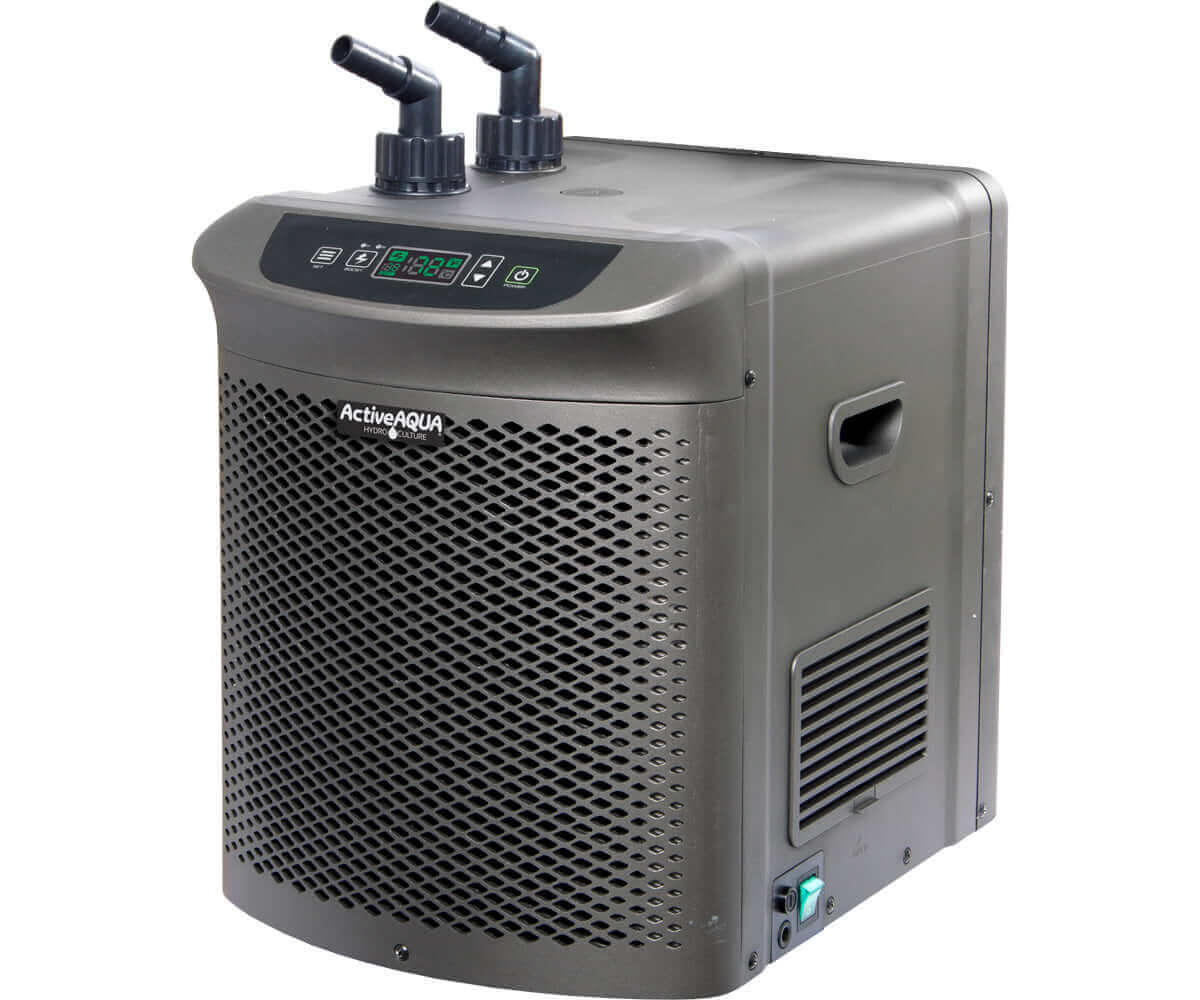

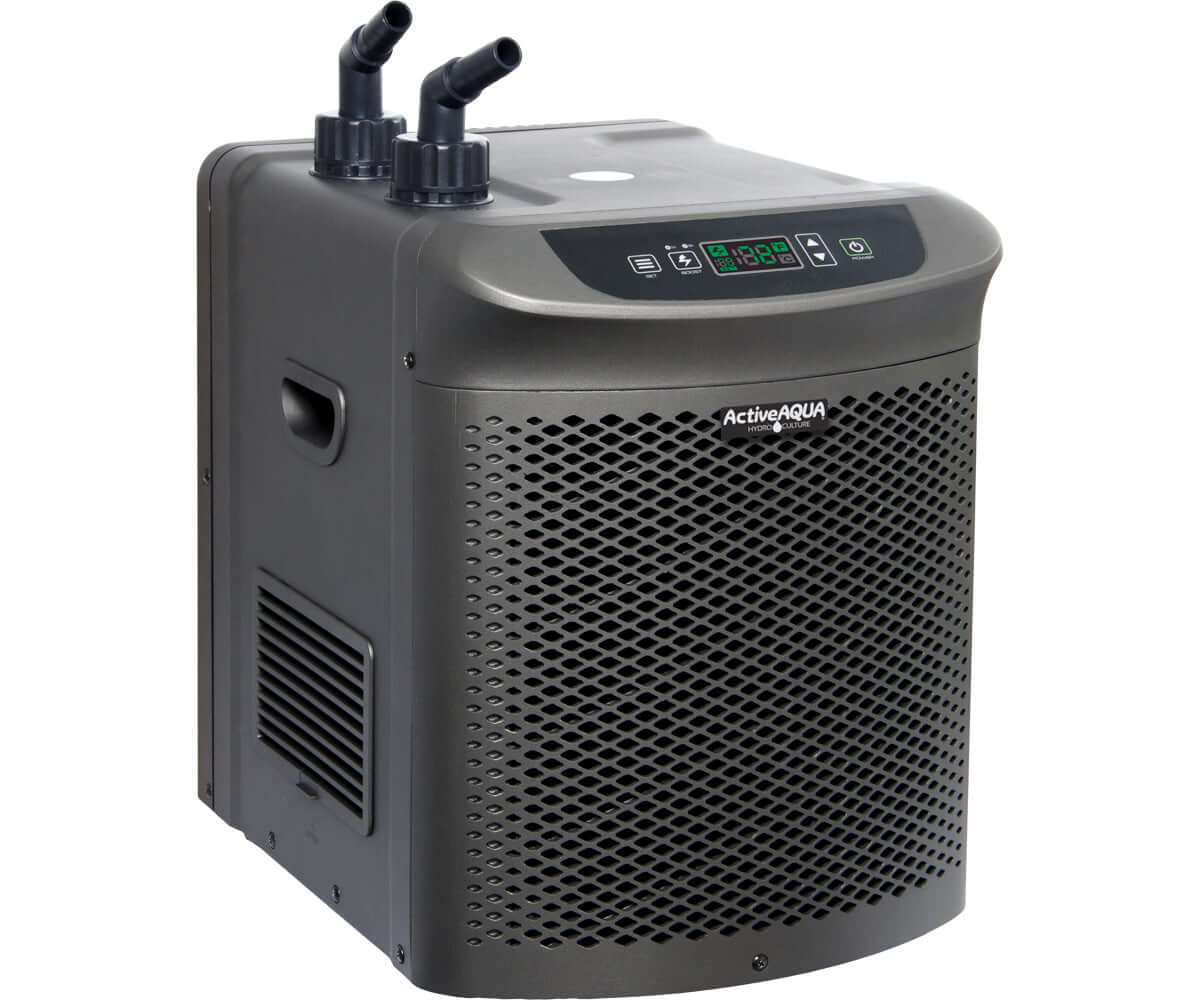

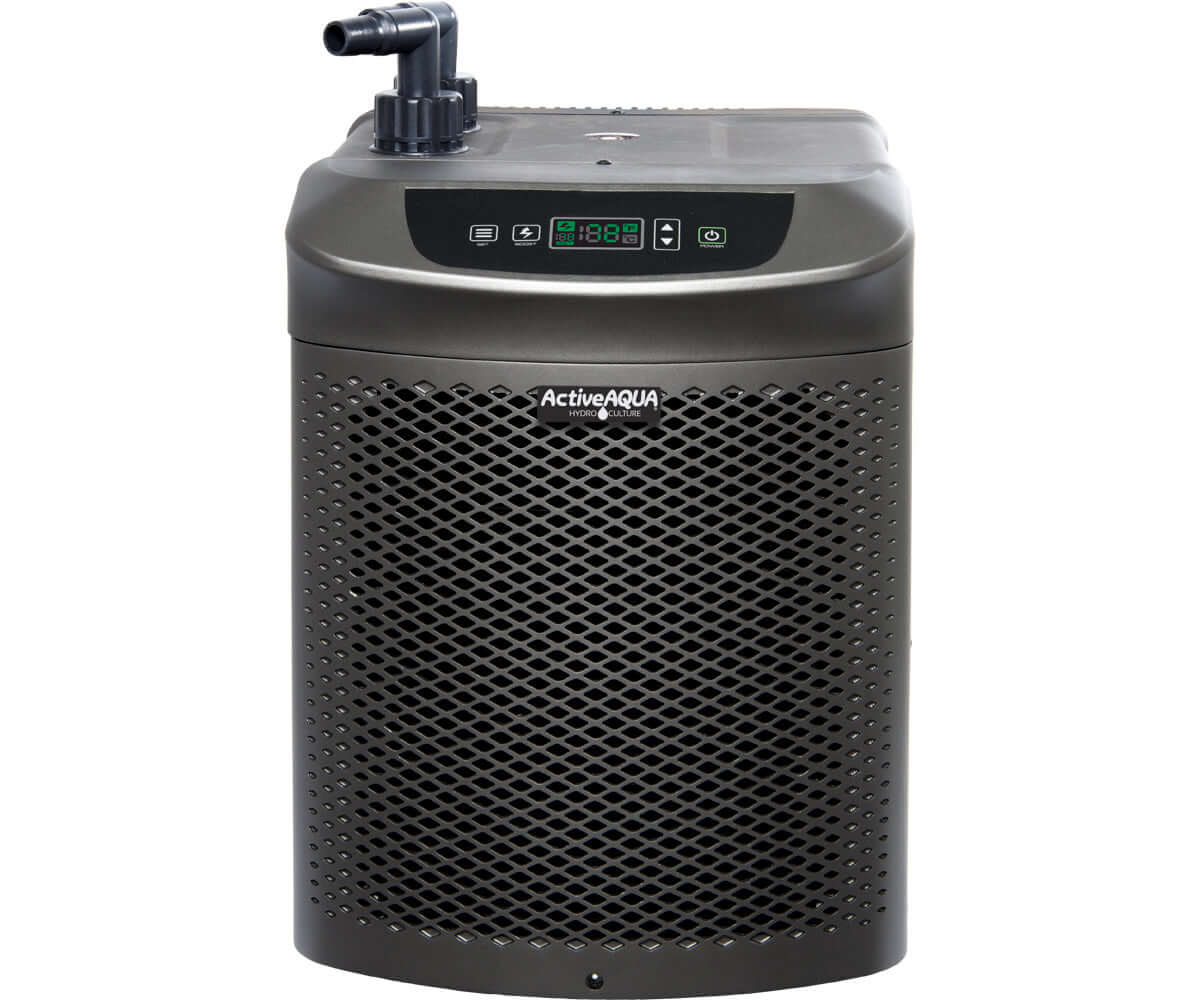

Active Aqua Chiller w/ Power Boost 1/4 HP
Active Aqua Chiller w/ Power Boost 1/4 HP
Active Aqua Chiller w/ Power Boost 1/4 HP

Active Aqua Chiller w/ Power Boost 1/4 HP

PRICE

SKU: AACH25HP

Prezzo di listino $799.00 Prezzo scontato$790.99
/
Spedizione calcolata alla cassa.

Description

Active Aqua 1/4 HP water chiller uses an anti-corrosive pure titanium evaporator for fresh or salt water. The manual recommends a reservoir volume of 40–92 gal (150–350 L) and flow of 396–925 GPH (1500–3500 LPH).

The chiller is approved for indoor use only, with a maximum pressure rating of 10 psi. It is not rated for central or household plumbing. Starting solution temperature affects the duration of initial chilling. Cooling performance also depends on installation location, distance from the reservoir, ambient temperature, nearby heat sources, lighting, pump size and connecting parts.

Recommended pumps: AAPW400, AAPW550 or AAPW800. 1/2-inch and 3/4-inch fittings are included. Refer to the linked manual’s model-specific performance chart for cooling capability. Flow depends on the pump, tubing and connectors.

Specifications
  • ETL registration: 4006823
  • Wire Gauge (AWG): 18AWG/3 CORE
  • Barcodes: 638104022972 (UPC-A)
  • Shipping Weight: 48.5 lbs.
  • Compressor: 1/4 HP
  • Reservoir volume recommended in manual: 40–92 gal (150–350 L)
  • Flow: 396–925 GPH (1500–3500 LPH)
  • Input voltage / frequency: 110–120 V / 60 Hz
  • Working current: 4.7 A
  • Cooling capacity: 3,010 BTU/h
  • Cooling-capacity test condition: Ambient 97°F (36°C), 460 W / 4.7 A
  • Refrigerant: R134a, 220 ± 10 g
  • Net weight: 46 lb
  • Unit dimensions: 18 L × 13 W × 17 H in
Data Sheet
  • Download the instructions: here
Kit Contents
  • Chiller
  • Two 1/2-inch fittings with gaskets
  • Two 3/4-inch fittings with gaskets
  • Two worm hose clamps
  • Replacement fuse
  • Instructions
